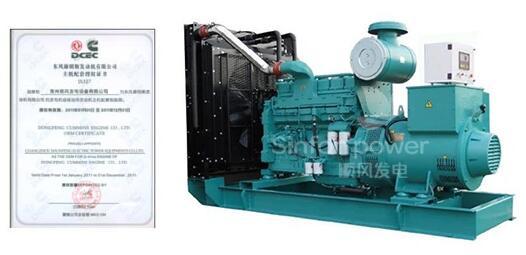

SINFON Cummins series diesel generator set

Category

Standard generator set

Features

SINFON Cummins series diesel generator set
Contact Us
Online Message

Product Details

1



SINFON power generation Cummins unit technical parameters
Unit parameters size and weight
Unit model diesel model Main Power
KW/KVA		 Backup Power
KW/KVA		 Rated Voltage (V) Stable Voltage Regulation steady-state frequency
Adjustment rate		 Open frame unit size (mm×mm)
Weight (kg)		 Silent unit size (mm×mm)
Weight (kg)
SC-24 4B3.9-G 24/30 26.4/33 400/230 ≤±1% ≤5% 1950×700×1095 876 2600×1000×1502 1300
SC-34 4BT3.9-G 34/42.5 37/46.25 400/230 ≤±1% ≤5% 1950×700×1095 893 2600×1000×1502 1350
SC-50 4BTA3.9-G 50/62.5 55/68.75 400/230 ≤±1% ≤5% 1840×700×1190 930 2600×1000×1502 1450
SC-80 6BT5.9-G 80/100 88/110 400/230 ≤±1% ≤5% 2150×730×1230 940 3060×1100×1600 1900
SC-100 6BTA5.9-G 100/125 110/137.5 400/230 ≤±1% ≤5% 2325×815×1315 990 3100×1100×1652 1950
SC-120 6BTAA5.9-G 120/150 132/165 400/230 ≤±1% ≤5% 2479×960×1400 1260 3230×1170×1800 2300
SC-130 6CTA8.3-G 130/162.5 143/178.8 400/230 ≤±1% ≤5% 2479×960×1400 1470 3500×1100×1802 2400
SC-160 6CTAA8.3-G 160/200 176/220 400/230 ≤±1% ≤5% 2479×960×1400 1515 3800×1200×1853 2750
SC-200 6LTAA8.9-G 200/250 220/275 400/230 ≤±1% ≤5% 2530×975×1500 2200 3800×1200×1903 2900
SC-200 NTA855-GA 200/250 220/275 400/230 ≤±1% ≤5% 3155×1050×1540 3300 3590×1250×2050 2900
SC-250 NTA855-G1A 250/312.5 275/343.75 400/230 ≤±1% ≤5% 3155×1050×1540 3350 4225×1460×2150 4000
SC-280 NTA855-G2A 280/350 308/385 400/230 ≤±1% ≤5% 3030×1100×1900 3150 4225×1460×2150 4000
SC-300 NTA855-G7 300/375 330/412.5 400/230 ≤±1% ≤5% 3155×1050×1540 4495 4225×1460×2150 4200
SC-360 KTA19-G3 360/450 396/495 400/230 ≤±1% ≤5% 3400×1360×2090 4200 4800×1400×2103 5400
SC-400 KTA19-G4 400/500 440/550 400/230 ≤±1% ≤5% 3400×1360×2090 4250 4630×1660×2250 5500
SC-500 KTAA19-G7 500/625 550/687.5 400/230 ≤±1% ≤5% 3443×1300×1916 5010 5500×1800×2418 6500
SC-600 KTA38-G2 600/750 660/825 400/230 ≤±1% ≤5% 4550×2060×2450 5900 6058×2438×2591 11500
SC-800 KTA38-G5 800/1000 880/1100 400/230 ≤±1% ≤5% 4800×2060×2450 7550 6058×2438×2896 12500
SC-900 KTA38-G9 900/1125 990/1237.5 400/230 ≤±1% ≤5% 4900×2200×2450 8500 6058×2438×2896 13000
SC-1000 KTA50G3 1000/1250 1100/1375 400/230 ≤±1% ≤5% 4525×1900×2310 9900 6058×2438×2896 18000
SC-1200 KTA50G8 1200/1500 1320/1650 400/230 ≤±1% ≤5% 4980×2200×2480 13500 6058×2438×2896 20000



Main parameters of Cummins diesel engine (1500RPM)　
Manufacturer Number of cylinders/
Arrange by		 Bore ×Stroke
(mm×mm)		 Air
Compression Ratio		 Total engine displacement
(Liter)		 Oil Capacity
(L)		 Total Coolant Capacity
(L)		 100% load
Fuel consumption
(g/kwh)		 Fuel System Gas volume
(m3/min)		 Smoke volume
(m3/min)
4B3.9-G 4 in line 102×120 16.5：1 3.9 11 21 228 direct injection 1.98 4.27
4BT3.9-G 4 in line 102×120 16.5：1 3.9 11 21 214 direct injection 2.69 6.48
4BTA3.9-G 4 in line 102×120 16.5：1 3.9 16.4 24 216 direct injection 5.9 14.8
6BT5.9-G 6 in line 102×120 17.5:1 5.9 16.4 27 214 direct injection 6.48 16.8
6BTA5.9-G 6 in line 102×120 17:1 5.9 16.3 29 211 direct injection 8.2 17.6
6BTAA5.9-G 6 in line 102×120 16.5:1 5.9 16.4 29 208 direct injection 8.7 19.44
6CTA8.3-G 6 in line 114×135 17:1 8.3 27.6 34 215 direct injection 12.4 34.7
6CTAA8.3-G 6 in line 114×135 16:1 8.3 24 40 205 direct injection 11.2 29.1
6LTAA8.9-G 6 in line 114×145 16:1 8.9 27.6 41 197 direct injection 13 35
NTA855-GA 6 in line 140×152 15：1 14 36.7 21 201 direct injection 21 58
NTA855-G1A 6 in line 140×152 14.5：1 14 36.7 21 201 direct injection 23 61
NTA855-G2A 6 in line 140×152 14：1 14 36.7 85 200 direct injection 425 1126
NTA855-G7 6 in line 140×152 14：1 14 37 85 201 direct injection 29.1 79.5
KTA19-G3 6 in line 159×159 13.9:1 18.9 50 106 204.6 direct injection 533 1489
KTA19-G4 6 in line 159×159 14.5:1 18.9 50 106 203 direct injection 579 1604
KTAA19-G7 6 in line 159×159 13:1 18.9 50 116.5 149 direct injection 43.9 119.5
KTA38-G2 V-type 12-cylinder 159×159 14.5：1 37.8 135 252 213 direct injection 920 2643
KTA38-G5 V-type 12-cylinder 159×159 13.9：1 37.8 135 258 202 direct injection 1213 3306
KTA38-G9 V-type 12-cylinder 159×159 13.9：1 37.8 135 336 256 direct injection 1309L/s 3539L/s
KTA50G3 V-type 16-cylinder 159×159 13.9：1 50.3 177 161 197 direct injection 1643L/s 4529L/s
KTA50G8 V-type 16-cylinder 159×159 14.9：1 50.3 204 330 204 direct injection 1655L/s 4350L/s



Unit electrical performance

Rated power factor: 08 (lag) Voltage: 380-415V.50Hz380-480V.60Hz.
Power output: SC series is continuous power, in line with ISO8525 regulations, and can provide 10% overload service for 1 hour every 12 hours
Working environment: in line with GB1105, ISO3046 standards.
Eight electrical performance indicators: in line with GB2820.1-6-97 standard.
Voltage regulation mode: automatic. Start mode: electric.
